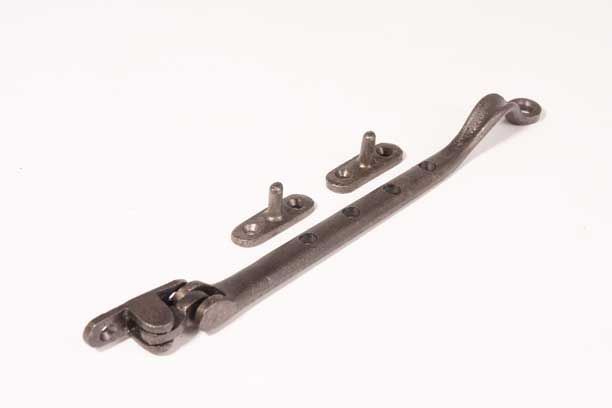

Window stay for pivot window 260mm cast iron gray - tin color - 8mm

Window stay for pivot window 260mm cast iron gray - tin color. A window stay made of cast iron in a metal gray color. The metal gray color is the original, cast iron color with a transparent coating. This color is also called tink color. This iron window stay can open the window at different positions. Originally, this opener is intended for a pivot window. But it can also be placed on a swing window if there is enough space and the window is neither too heavy nor needs to be opened very far. With a swing window there is more force on the opener and we do not recommend using it for heavy swing windows.

Dimensions of the window stay for turn window 260mm cast iron gray - tin color

The cast iron gray window stay has an overall length of 260mm. The mounting base for the turnout has a height of 16mm and a width of 52mm. The distance between the window and the center of the first hole is about 73mm. The distance from the first hole to the fourth hole (center to center) is about 100mm. The expansion distance depends on the location relative to the hinged surface. The closer to the hinge mounted, the further the window can expand. The 4 holes have a diameter of 8mm.

This window opener comes with the necessary fasteners and with two pins to fix the window opener. Because two pins are included, the closer can be fixed in the closed position. This makes it more difficult to open the window from the outside.
