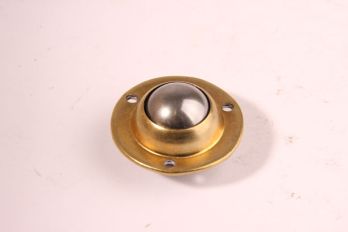

Wheel with steel ball 45mm iron brass

Wheel with steel ball 45mm iron brass. A wheel with ball bearing and metal ball as tread. This ball wheel can be placed under the object to make it roll. They can also be used, for example, on a table or logistics workstation. With these wheels, boxes or plates can be easily pushed through. The advantage of a ball wheel is that it can roll in all directions. Part of this wheel (9mm) can be milled in. This makes this wheel ideal for use under surfaces where there is little space.

Dimensions wheel with steel ball

The mounting plate has a diameter of 45mm and the whole has a total height of 27mm. The milling diameter is 30mm and the milling depth is 9mm with the 36mm edge lying on the material. By partially countersinking the ball wheel, it stays well in place. Because of its size, a flat surface is required.

The wheel is supplied with three screws for fastening.
