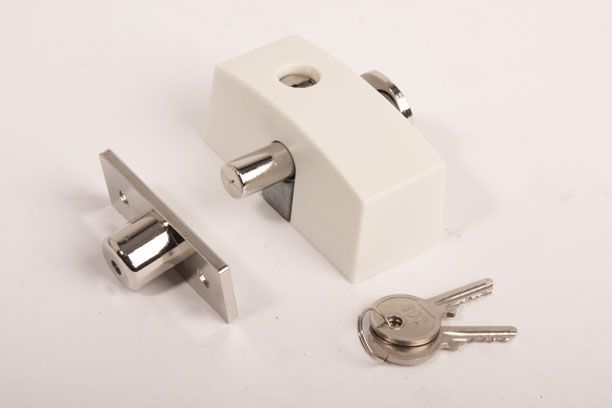

Top lock narrow with cylinder lock White SKG* outside hinged

Top-up lock narrow with cylinder lock White SKG* outside turning - Top-up lock with white cap for windows that open to the outside including two keys. The striker and striker plate has a nickel plated finish. This overlay lock has an SKG* (one) approval. This lock can be used alongside classic window latches and other window locks.

The base plate of the latch is 37mm x 77mm and the height is 36mm. The locking plate is 60mm x 24mm and the hole for the round recess has an outer diameter of 18mm.

Two locks are recommended per window(this item and the price is each) and the locks are supplied flush.

The lock is mounted on the window and a pin on the striker can be used to center the position for the locking plate. The circular recess of 18mm can be drilled out (16mm deep in relation to the bottom of the striker plate) and if necessary the striker plate can be chiseled out rectangularly (60mm x 24mm and 4mm deep).
