Lock overlay blank iron left and right 2/2,5/3/3,5/4/5/5,5cm zs+sl

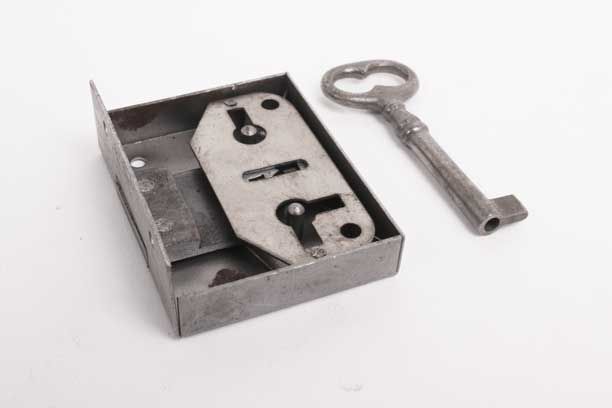

Deck lock blank iron left and right 20/25/30/35/40/50/55 mm with key. Heavy, solid lock to be used for furniture and interior construction. The distance between the center of the key and the front of the lock is 20/25/30/35/40/50 or 55 mm. The lock can be used on either the right or left side of the door. This solid lock runs smoothly and can be used on larger cabinet doors. It is possible to paint the cabinet with it.

Dimensions of the opdekslot blank iron left and right 20/25/30/35/40/50/55 mm with key

The lock has a total height of 68mm, a thickness on the door of 13mm (24mm total thickness including lip) and a width of 19mm + the pin size. For a lock with a center distance (pin size) of, say, 30mm, the width is 49mm. The center of the pin size is 19mm above and below the half of the lock. The striker protrudes about 9.5mm from the lock case. The lock case has 4 holes for fixing. And on the front of the lock case, there are two more holes for solid fastening.

Dimensions of the key for the cover lock blank iron left and right

The key has a working length of 36mm and can be used in a wood thickness of up to 25mm. The eye of the key is 30mm wide and 22mm high. The key has an overall length of 73mm.

The lock comes without screws and with one key as shown.

The lock is made of bright untreated iron and both the case and key may have superficial rust spots. These rust spots are easily polished off with fine steel wool. The lock itself is well oiled and runs smoothly.
