Corpus connector with dowel and spreader pin Blum set 8x White

Corpus connector with dowel and spreader pin Blum set 8x White - Corpus connector for one corpus consisting of 8x a dowel with spreader pin and a connector. The connector is from the brand Blum (40.0200N).

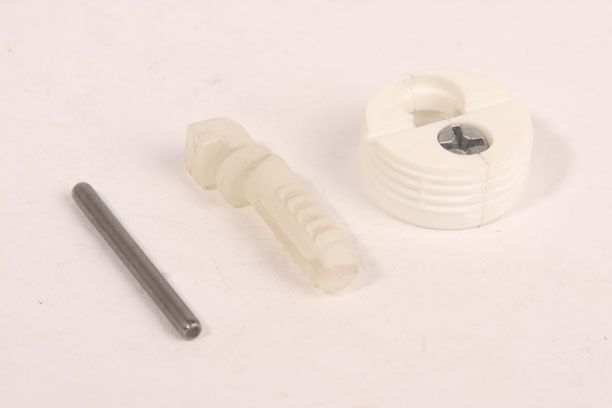

The connector for the corpus side consists of a white plastic shell with zinc eccentric. The connector screw for the bottom consists of a plastic screw with a steel spreader pin.

On the corpus side, the drill-in/mill-in diameter is 25mm and the depth is at least 12mm. The center of the hole will be 7.4mm above (on the bottom side) the center of the hole in the bottom. On the bottom side, an 8mm hole is needed with a depth of 25mm. The distance from the center point of the hole in the bottom to the top of the bodum can be up to 9mm.
