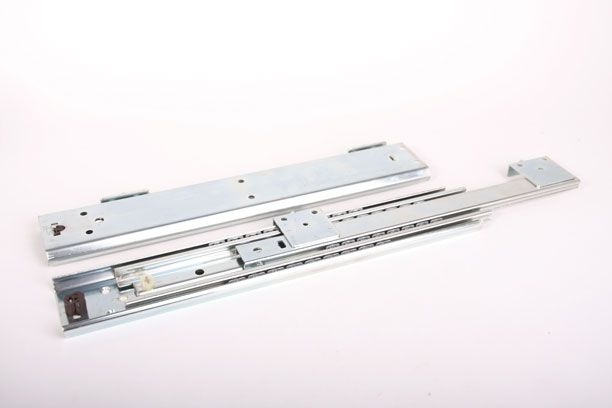

Ball drawer guide heavy 100% extendable 400mm per pair

Ball drawer guide heavy 100% extendable 400mm per pair. Set of two ball drawer slides / ball bearing telescopic guide with a length / installation dimension of 400mm from the brand Thomas Regout. These drawer slides are +100% extendable (435mm) with double guides and are applicable for heavier loads up to 90  KG per pair. The guide stops on a rubber stop.

Using the ball drawer guide heavy

The guide can be placed on the side (the maximum load is based on side mounting). The drawer guide is 78mm high excluding the two pins, 87.5mm including the pins and 20mm thick. The two mounting pins on top of the guide have a center distance of 27.7m.

These slides can be used for heavy duty applications such as extendable workstations or tool drawers. With heavy loads they do need to be attached properly and firmly . On the side are 6 holes for screws up to 6.5mm thick.

The drawer slides are supplied without screws.

Height: 87.5mm
Length/dimensions: 400mm
Thickness: 20mm
Offset length: 435mm (relative to back of drawer)
