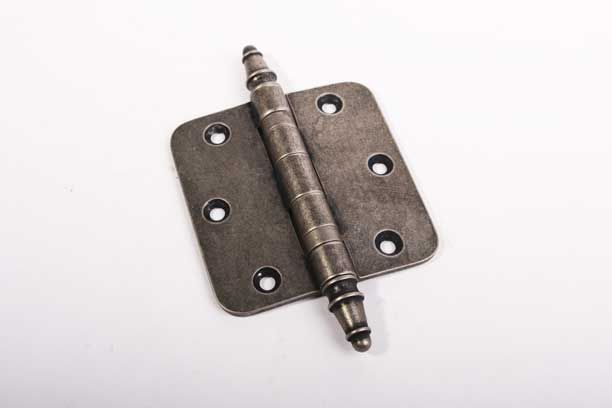

Ball bearing hinge with round corner in silver antique 3 inch 76mm with vase head

Ball bearing hinge with round corner in silver antique 3 inch 76mm with vase head.A bearing inner door hinge with round corners that is made of solid brass in the color silver antique. This classic door hinge combines the design of an old-fashioned hinge with modern bearings in the same color. Therefore, these hinges are also perfect to apply when remodeling or renovating a classic interior. Because of the silver antique color, this hinge can be well combined with silver antique door handles. But this is also a good alternative for example tinted and antique/old gray handles. Because the bearing hinge has rounded corners, it can be milled more easily into the frame and the door or window.

The hinge is made of solid brass which prevents the surface from rusting. As a result, this door hinge can basically be used on exterior doors as well. However, the door hinges are intended for indoor use and with outdoor use, especially with doors that turn outward, the steel bearings can be corroded over time.

The door hinge is made of solid brass so the surface cannot rust.

Dimensions of ball bearing hinge with round corner in silver antique 3 inch 76mm with vase head

The (bled) height of the hinge is 76mm and the total width unfolded is 76mm. This size is also called 3 inches. The bled is made of 3mm thick solid brass and the sling has a thickness of about 13mm. The radius of the round corners is 10mm. The total height including the two vases is 122mm. The screw holes are in the standard place for a 3 inch or 76mm hinge and is therefore in many cases directly mountable in the place of existing hinges of the same size.

The hinge has 2 bearings and can be used on either the left or right side. Both vases are screwed tightly to the hinge so that the pin is locked in place and cannot easily come loose. Because of this, the hinge is only removable by unscrewing both vases and tapping the pin out. Because of the bearings, however, we do not recommend this.

This hinge comes with the necessary iron mounting screws in the color gray.
